KTM utilizes a staff of registered mechanical engineers (PE) that are qualified in the design and analysis of advanced machines, fixtures, lifting systems, and mechanical structures. We design and analyze for sufficient strength, optimal mechanical performance, and safety in accordance with industry standards and governmental regulations.
Box Girders
Overhead Crane Applications

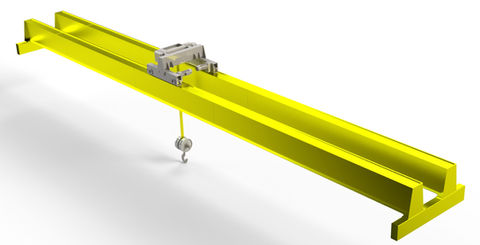

Single & Double Box Systems
In Accordance with CMAA
KTM designs box girders for overhead crane applications in accordance with CMAA specifications. This includes single and double box systems. KTM utilizes licensed professional engineers to generate fabrication drawing packages in accordance with standards
-
CMAA 70
-
CMAA 74
Box Girder Pricing
KTM provides fixed price box girder designs for $3,100.
The KTM Advantage
Through a proprietary analysis tool KTM is able to optimize strength with minimal material usage. KTM’s fabrication drawing package is centered on enabling efficient manufacturing processes. The drawing package includes:
-
Details for all components
-
Weld instructions
-
Bill of materials (BOM)
-
PE Sealed Top Level Drawing
